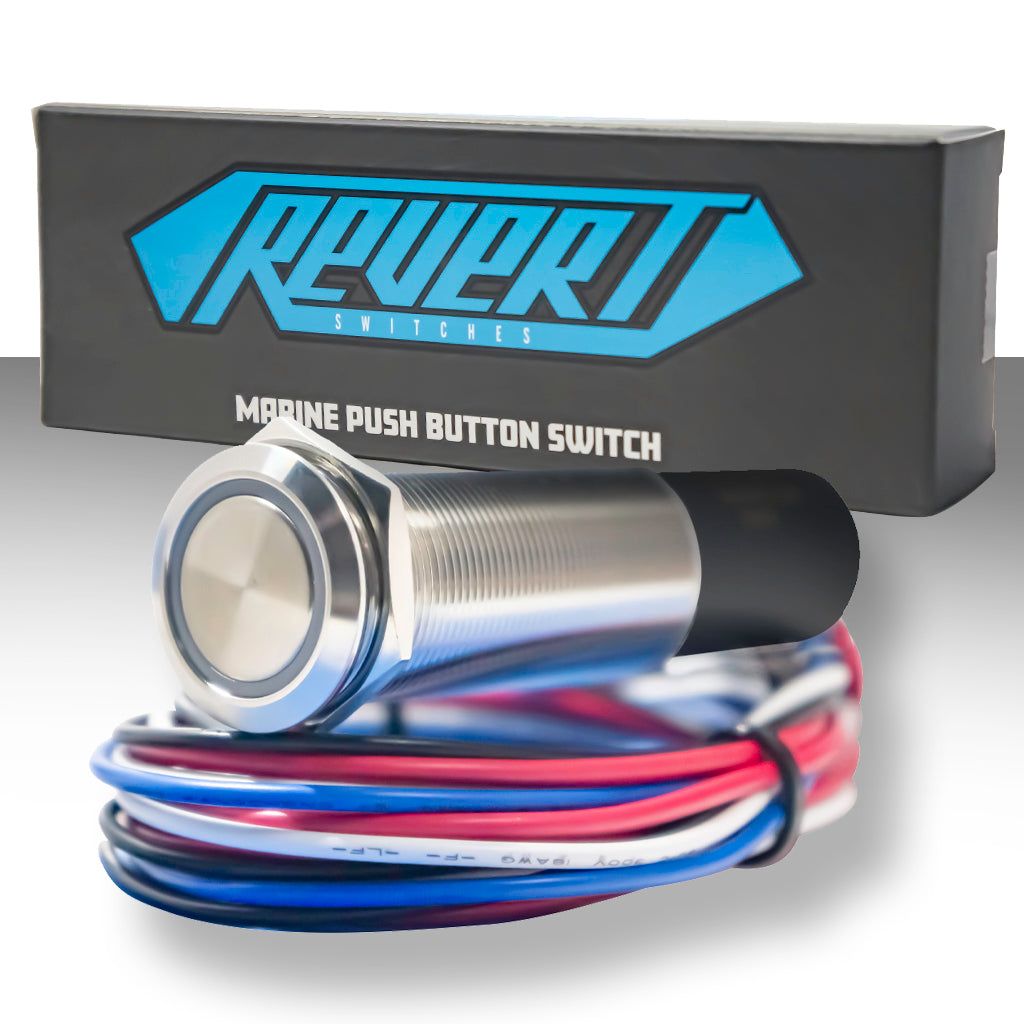

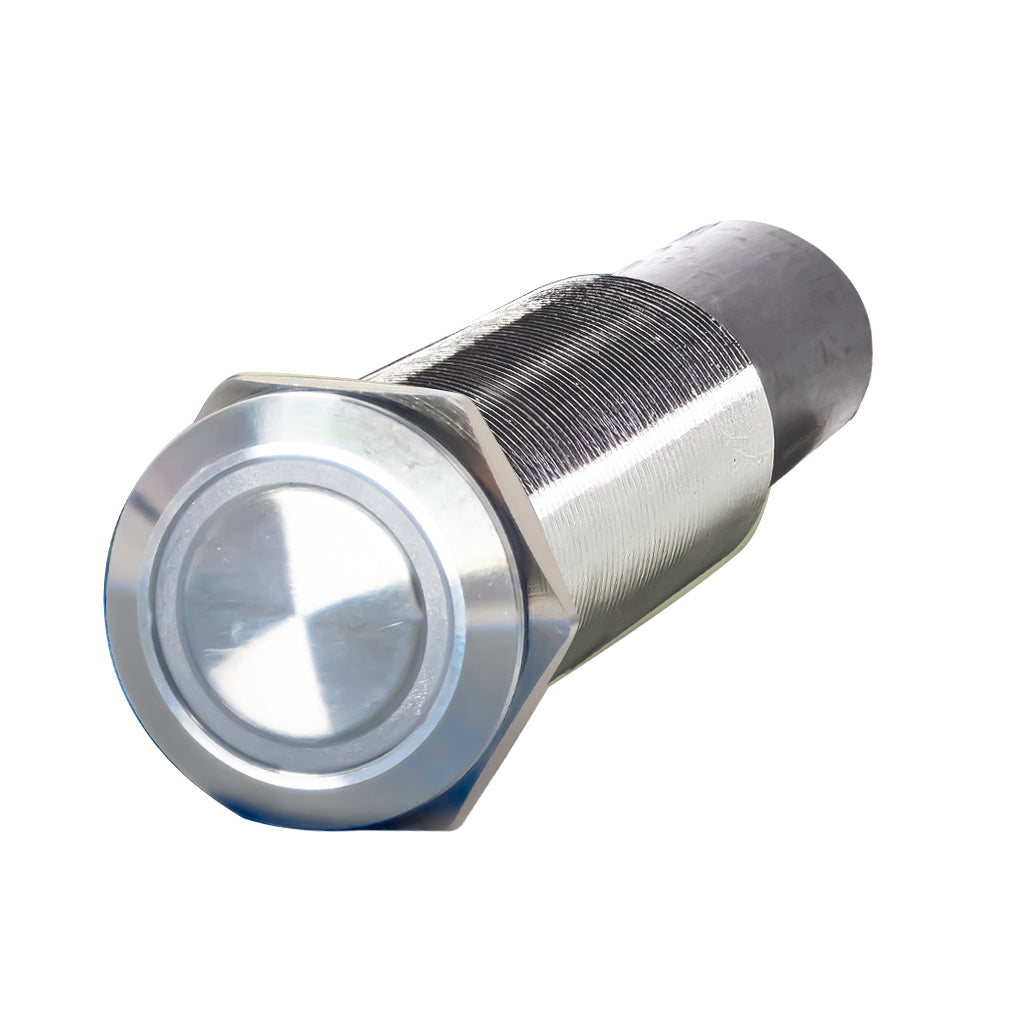

REVERT Harsh Environment | Dual Output | 3 Color | Push Button Marine Switch | 19MM | Stainless Steel

The marine world asked for it and here it is!  The revolutionary REVERT Switches.  Made to last the lifespan of the boat and keep your electronics functioning as intended. No corners cut here.  Nothing but the best components, material, and processes used for the bad boys.

FEATURES:

• Dual Output Switch - Can Control 2 Electronics at Once. (ex: Navigation Lights + Anchor Light)
• Input Voltage: 9~15V
• Solid State Circuitry Rated for 20A
• 316 Stainless Steel Housing = No More Fading

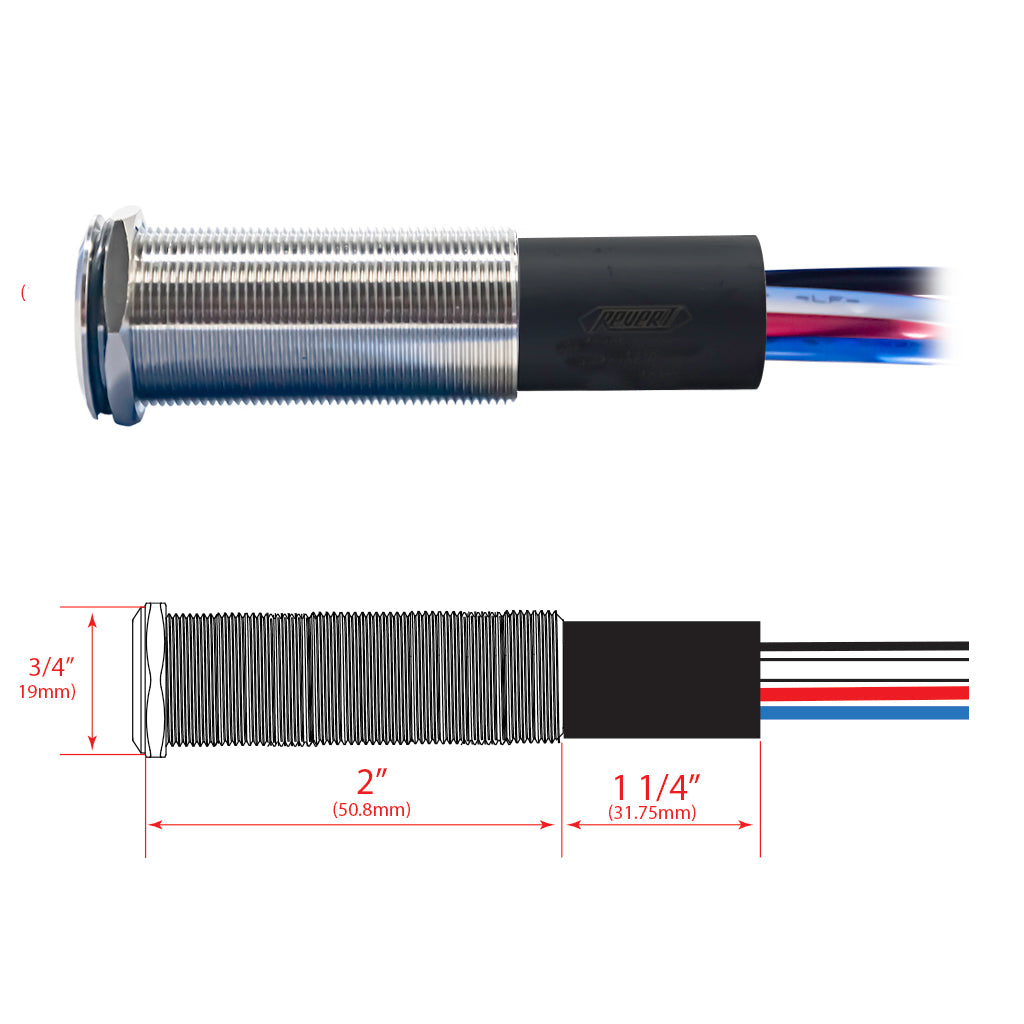

• 19mm (3/4") Diameter Button
• Tri Color LED Backlit Ring

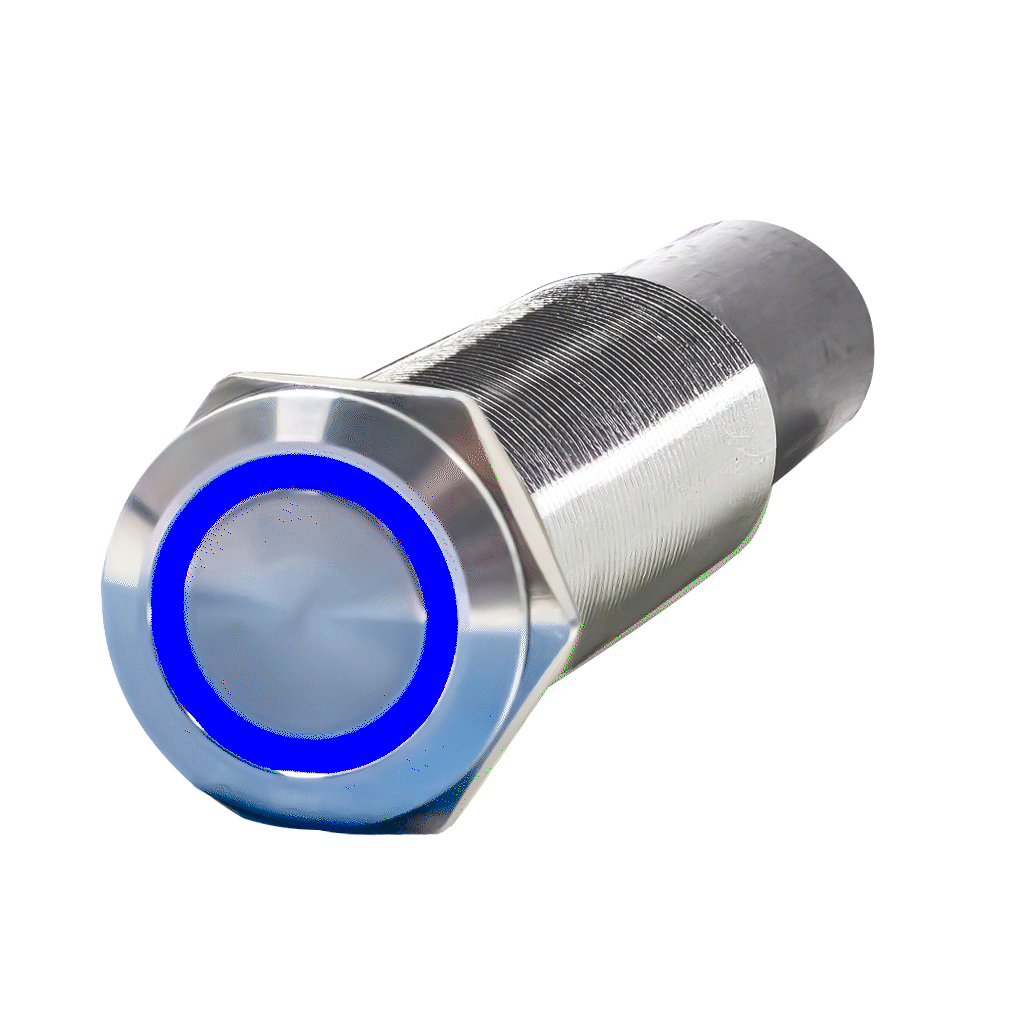

• LED is Blue when in the OFF Position

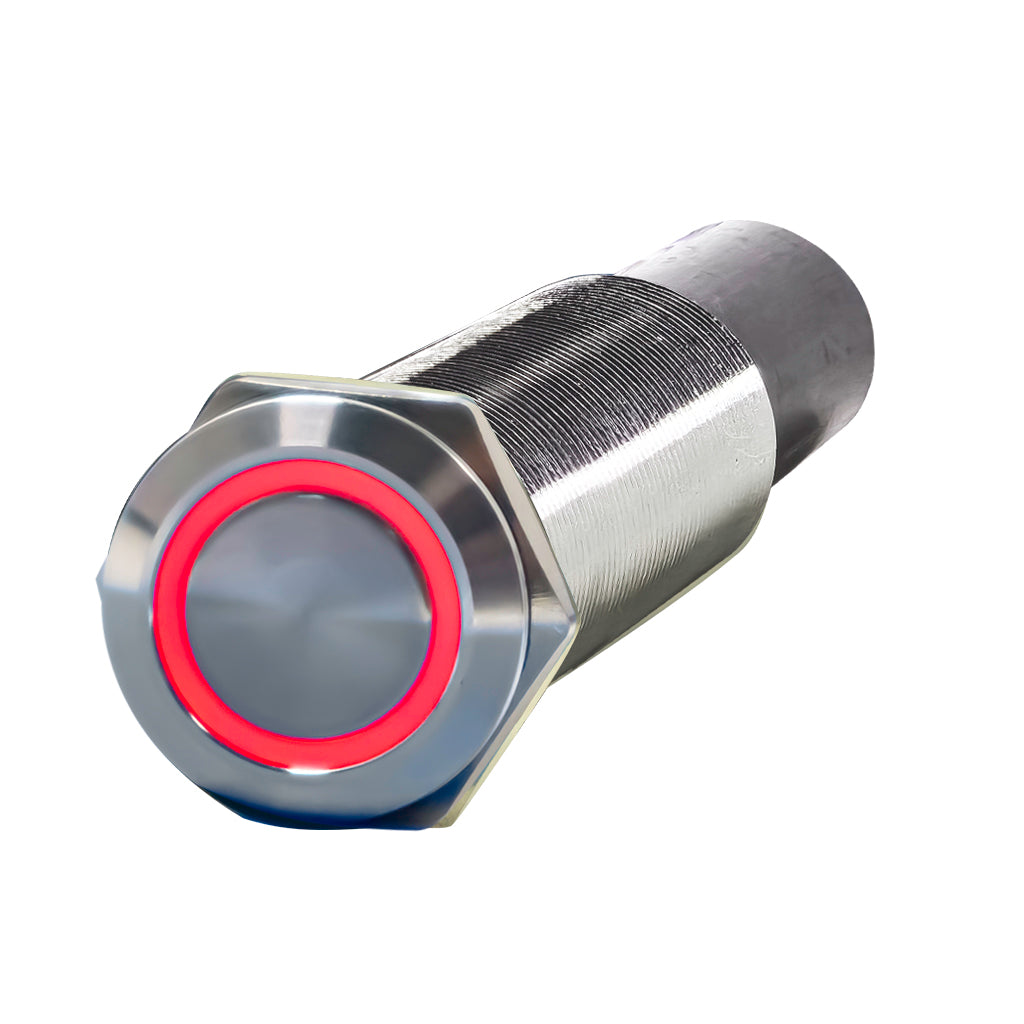

• LED is Red when in the ON Position ( Powering Navigation & Anchor Lights )
• LED is Green when in the ON position ( Powering Anchor Lights & Turning OFF Navigation Lights )
• The LED Lifespan is +40,000 Hours
• IP68 Rated Waterproof - Fully Potted
• Lifespan of 500,000 Impressions
• 8.6g Vibration Compliant
• Salt Spray Tested & UV Resistant
• Available in Momentary Operation Only

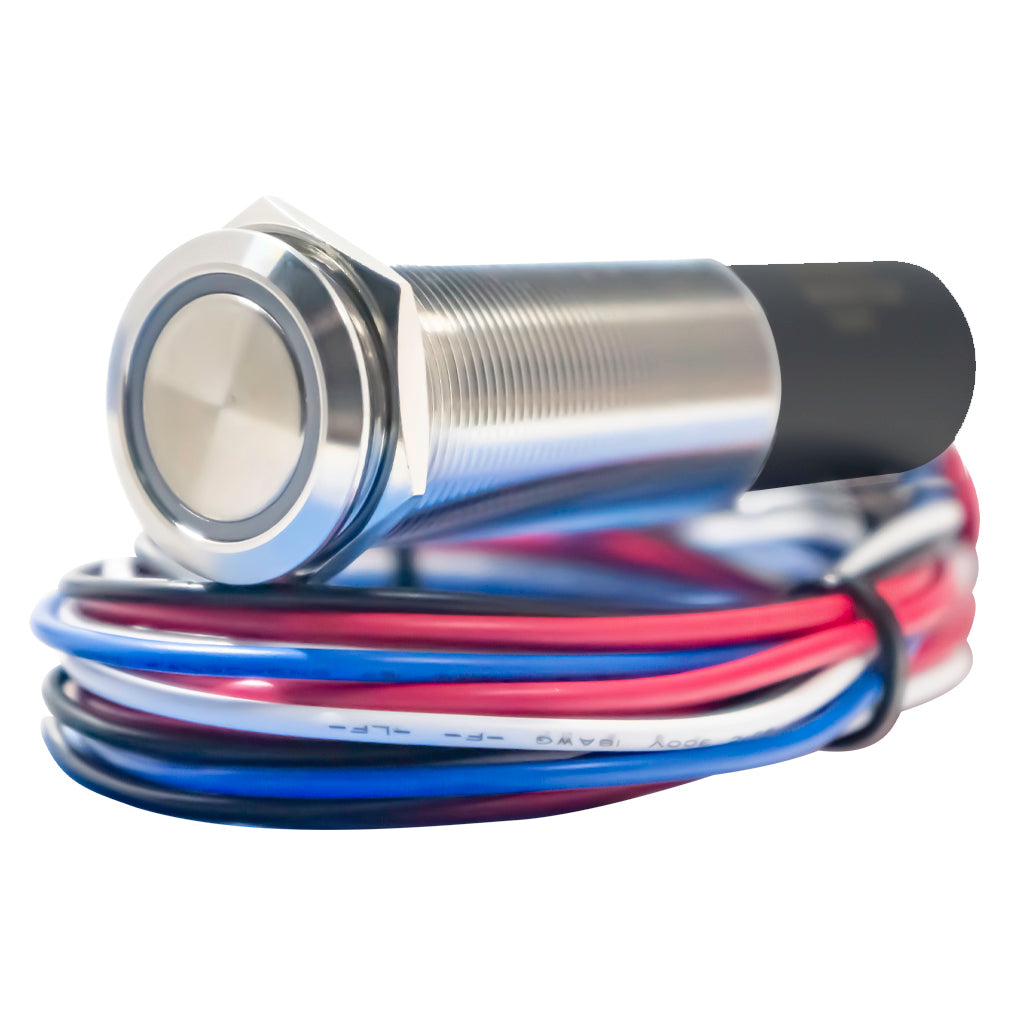

• 3ft of 14 AWG Copper Tinned Wiring for a Simple Installation
• Panel Mounting Thickness: <0."1 ~ 1.85" (1mm ~ 47mm)
• Requires a 3/4" Wide Round Hole for Mounting
• REVERT Limited Lifetime Warranty

HOW IT WORKS:

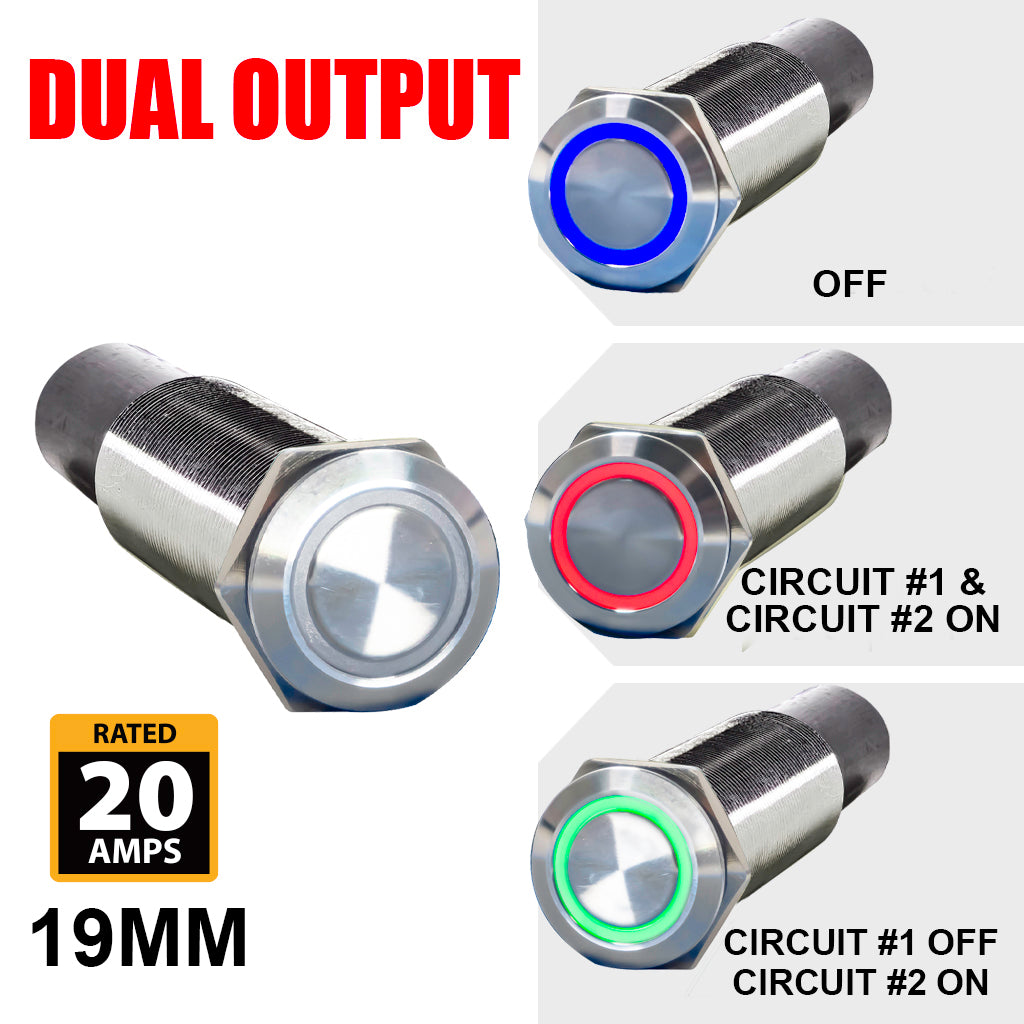

Power on but switch not pressed has a Blue illuminated LED ring.  First press turns on the Circuit #1 (white wire) & Circuit #2 (Blue wire) =  LED ring turns RED.  Second press leaves Circuit #2 (Blue wire) on and turns off Circuit #1 (White wire) = LED ring turns GREEN.  Third press turns all Circuits off = LED ring turns back to BLUE.

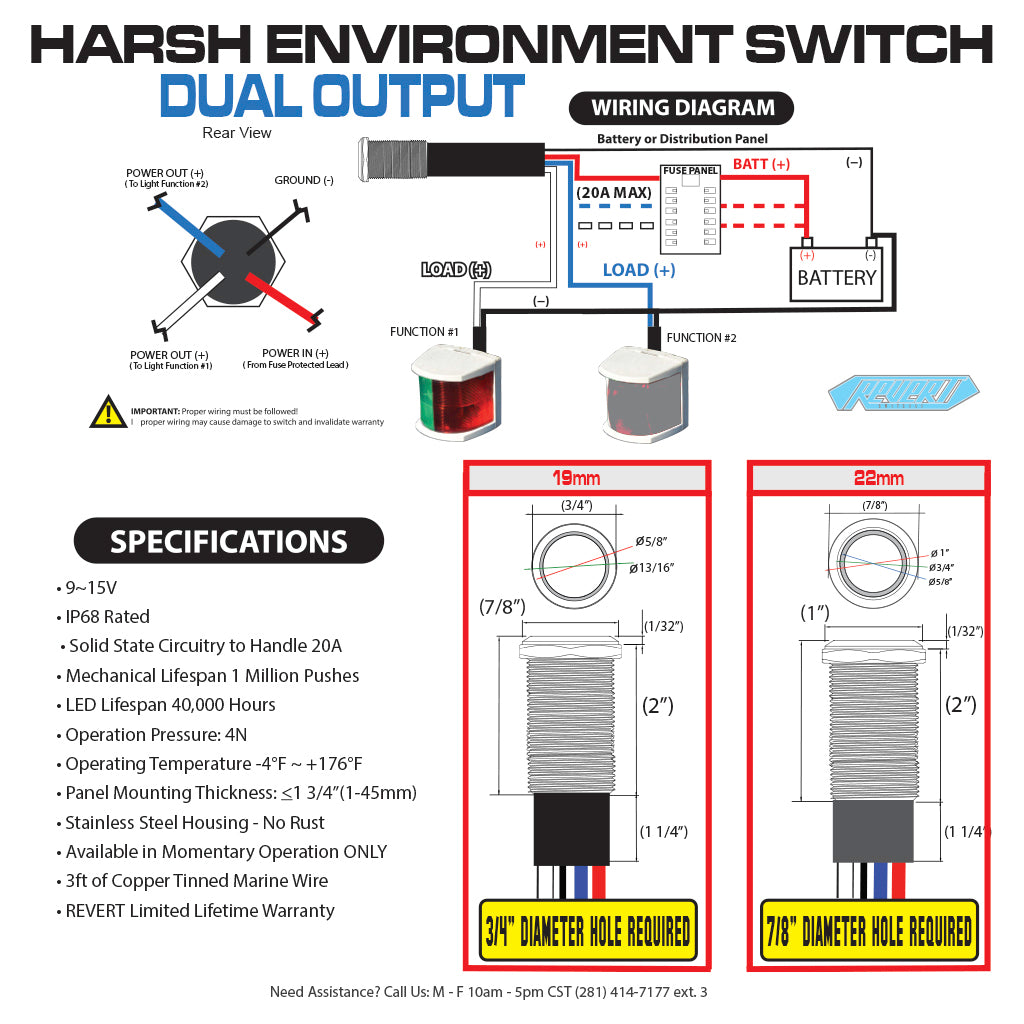

WIRING:

SPECIFICATION SHEET:
