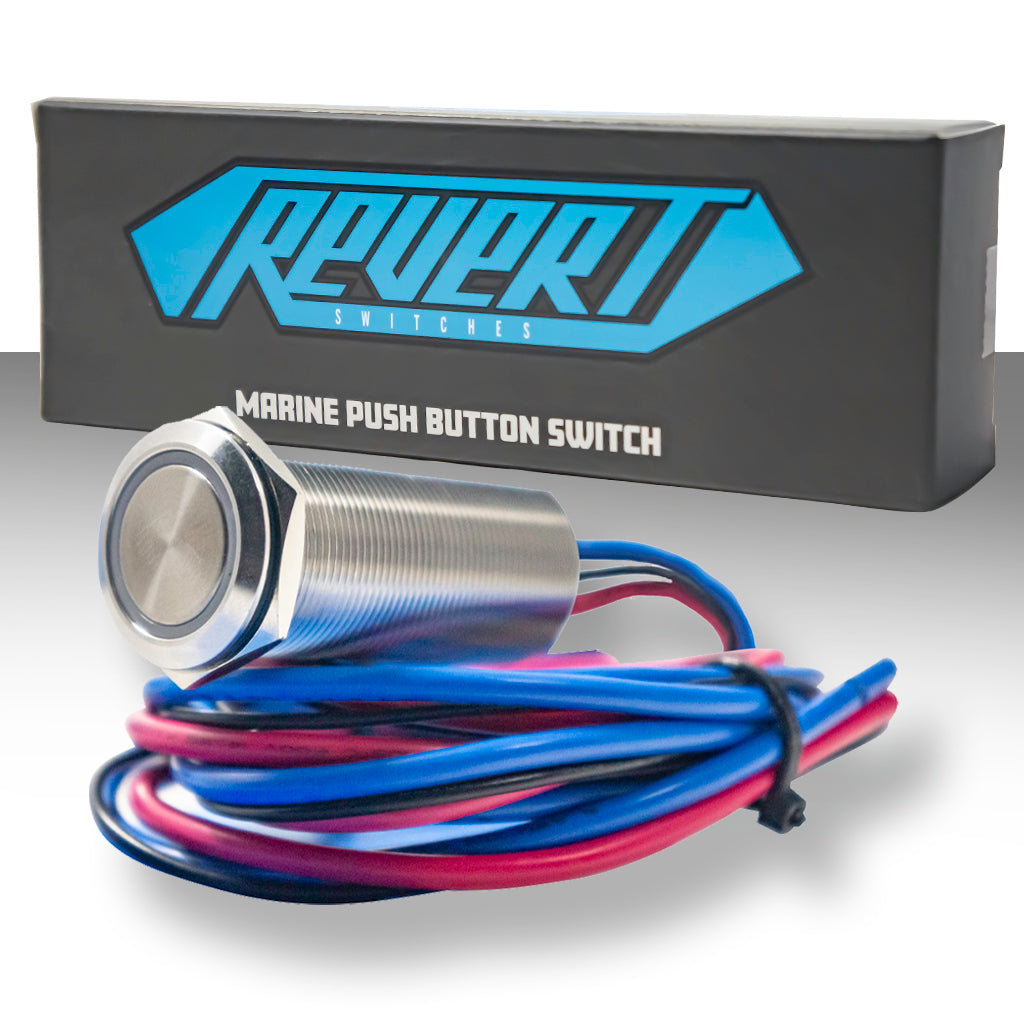

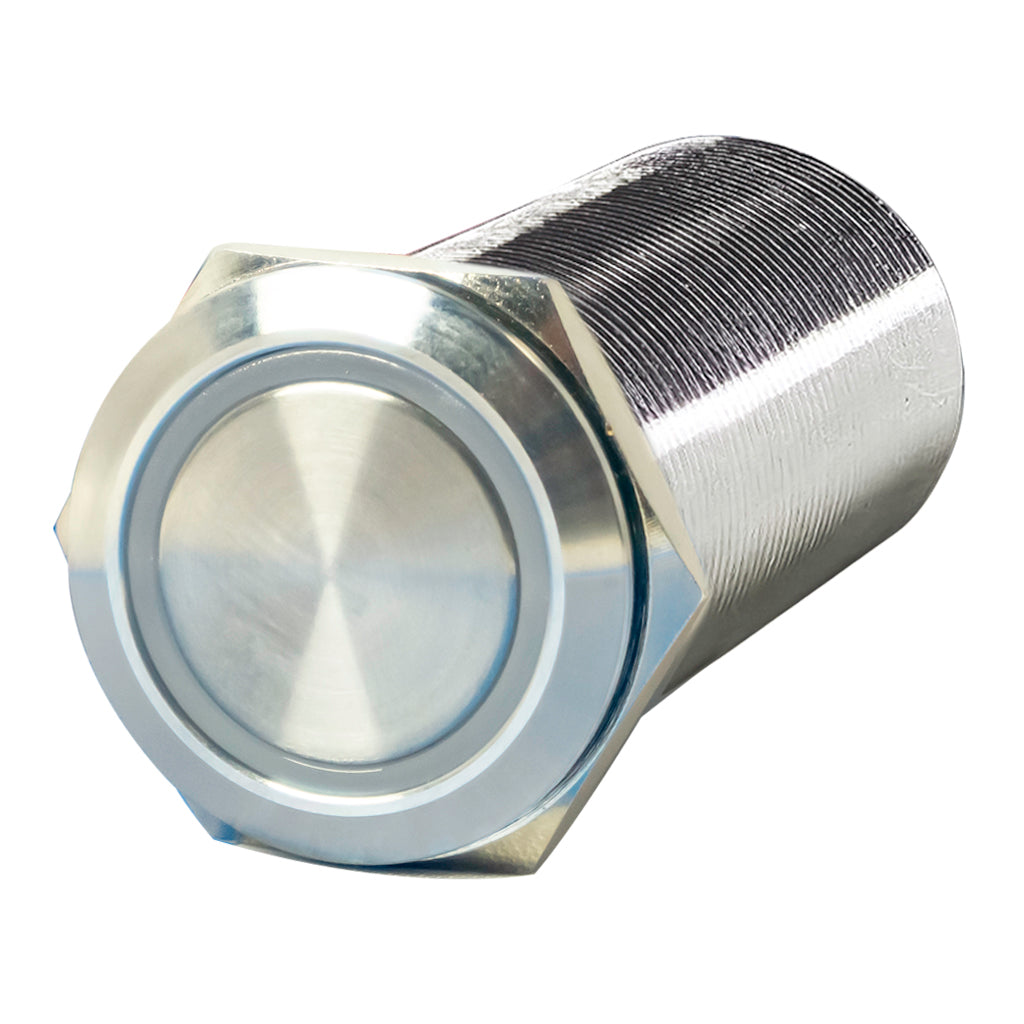

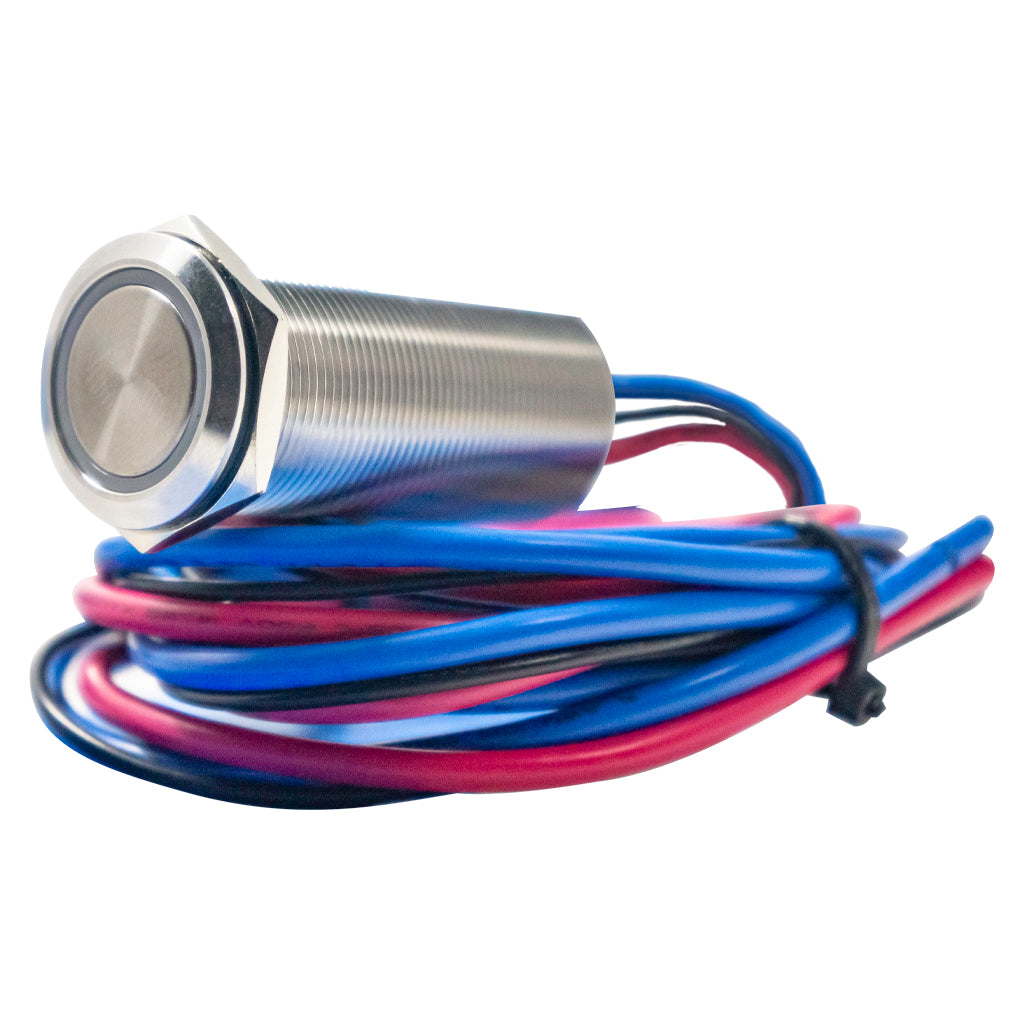

REVERT Harsh Environment Dual Color Push Button Marine Switch | 22MM | Stainless Steel

The marine world asked for it and here it is!  The revolutionary REVERT Switches.  Made to last the lifespan of the boat and keep your electronics functioning as intended. No corners cut here.  Nothing but the best components, material, and processes used for the bad boys.

FEATURES:

• Input Voltage: 9~15V
• Robust Mechanical Switch Rated for 20A
• 316 Stainless Steel Housing = No Rust
• 22mm (7/8") Diameter Button

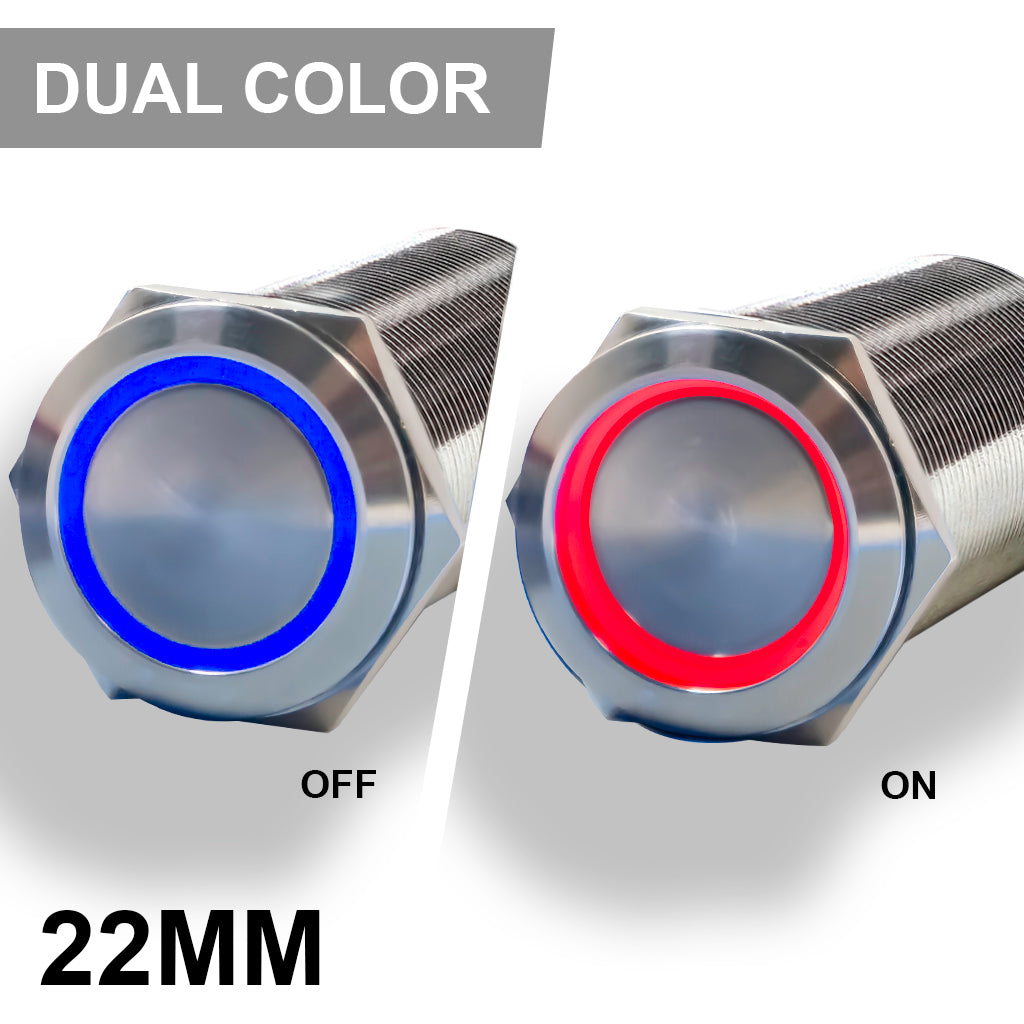

• Dual Color LED Backlit Ring

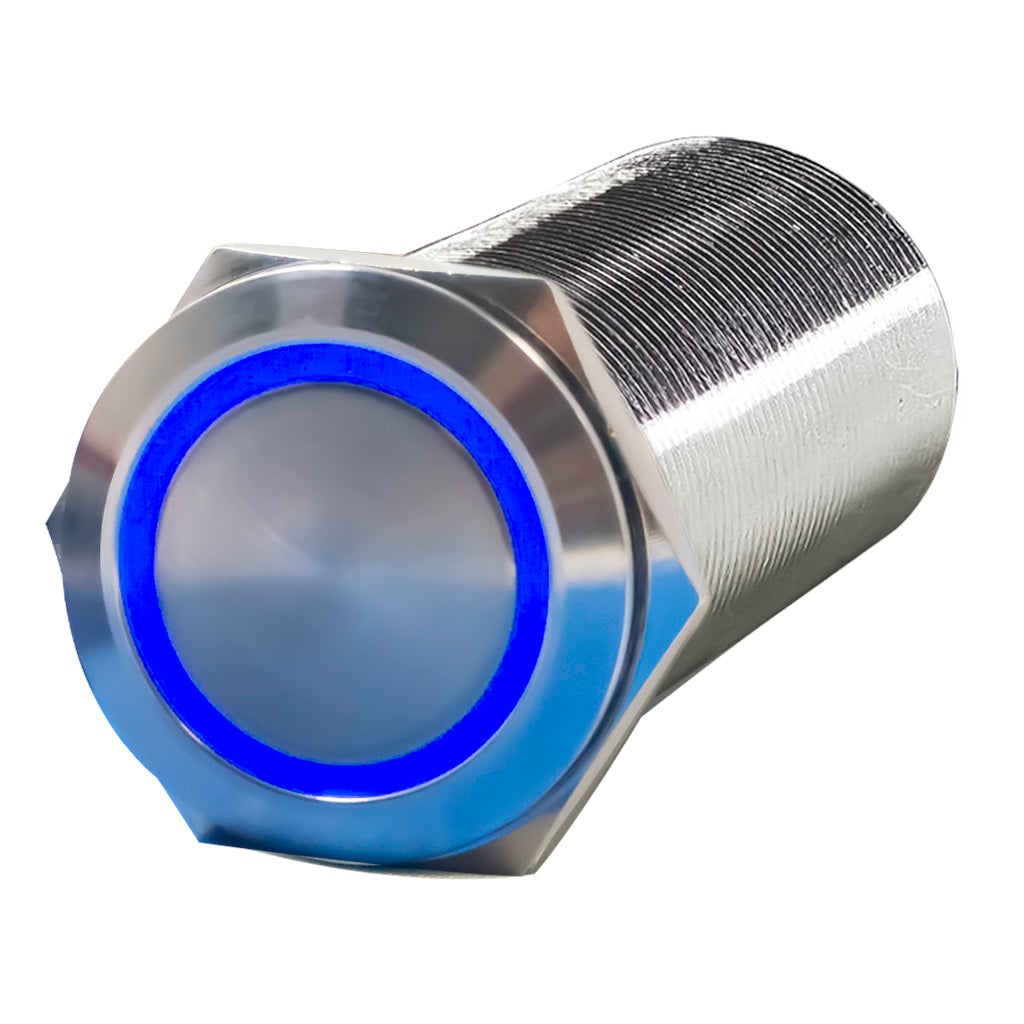

• LED is Blue when in the OFF Position

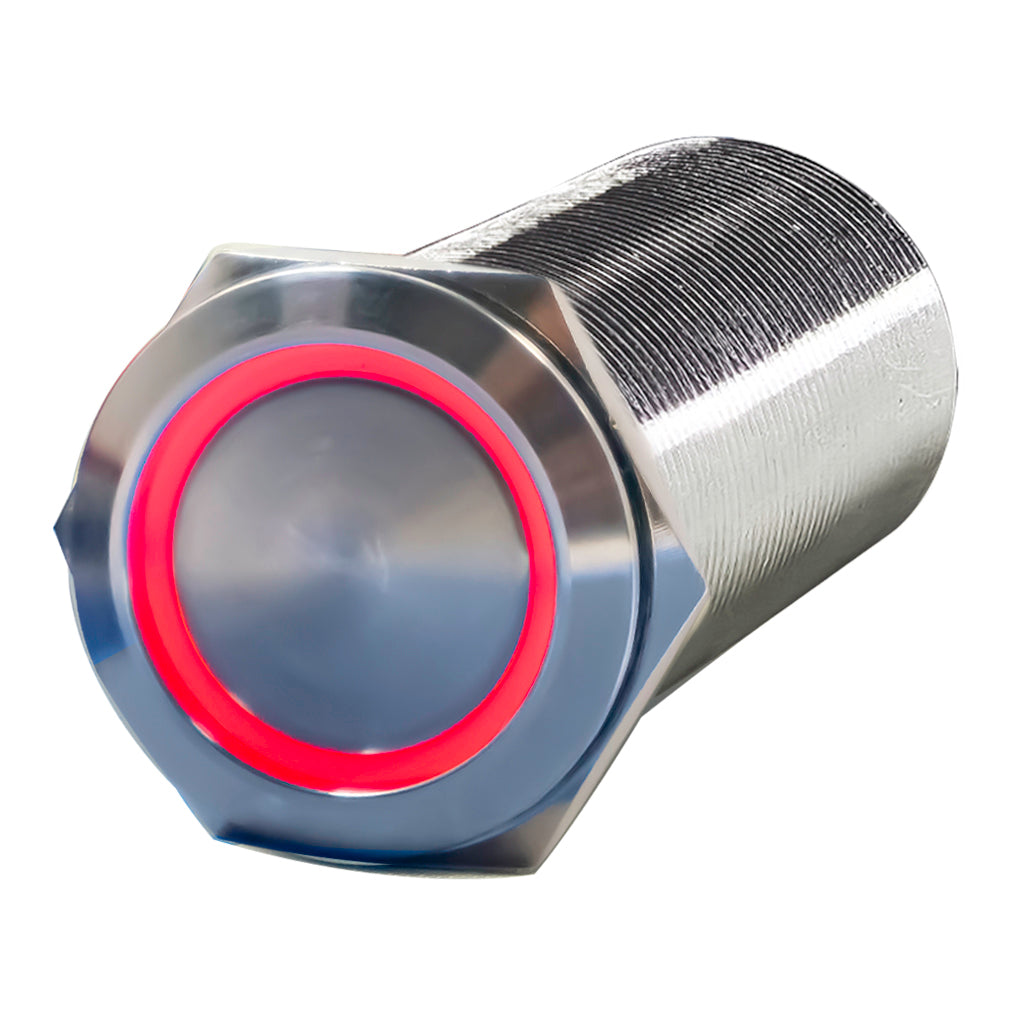

• LED is Red when in the ON Position
• The LED Lifespan is +40,000 Hours
• IP68 Rated Waterproof - Fully Potted
• Mechanical Lifespan of 150,000 Impressions
• 8.6g Vibration Compliant
• Salt Spray Tested & UV Resistant
• Available in Latching or Momentary Operation

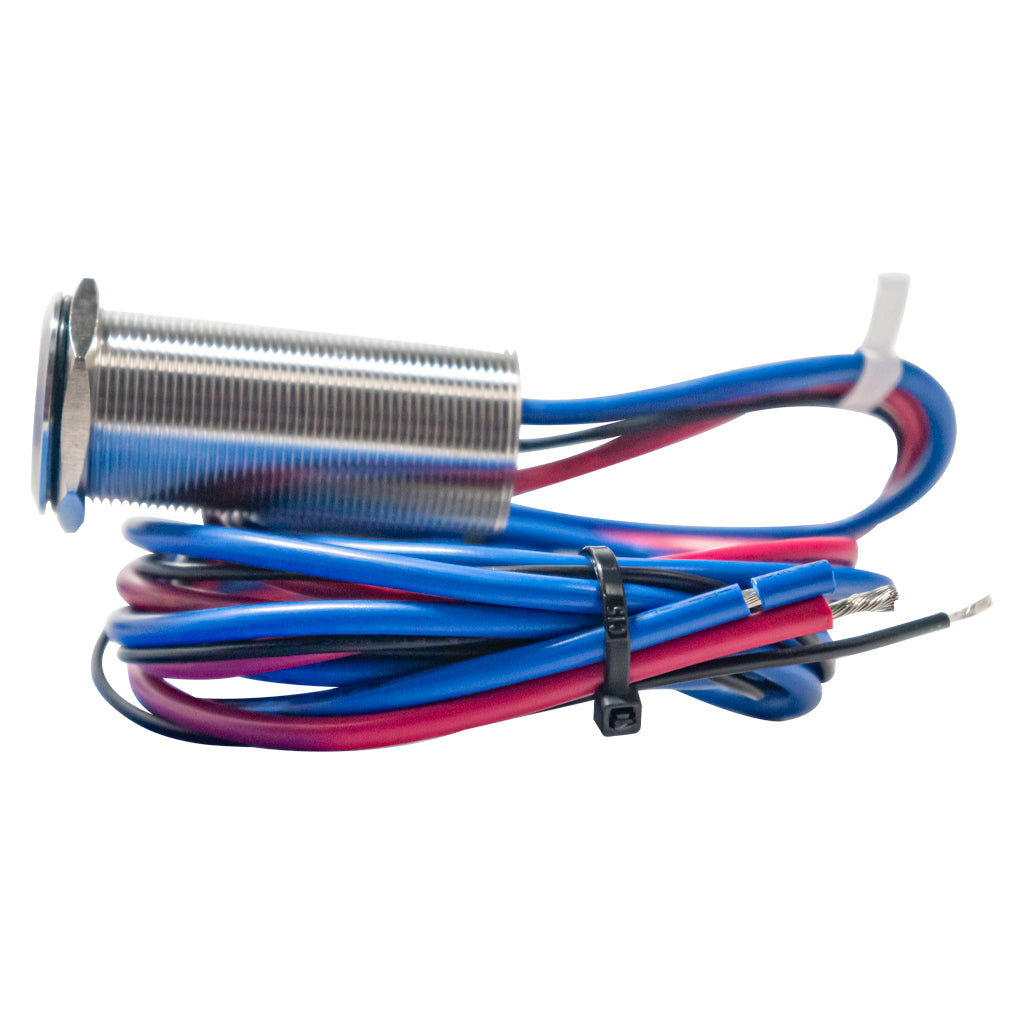

• 3ft of 14 AWG Copper Tinned Wiring for a Simple Installation
• Panel Mounting Thickness: <0."1 ~ 1.85" (1mm ~ 47mm)
• Requires a 7/8" Wide Round Hole for Mounting
• REVERT Limited Lifetime Warranty

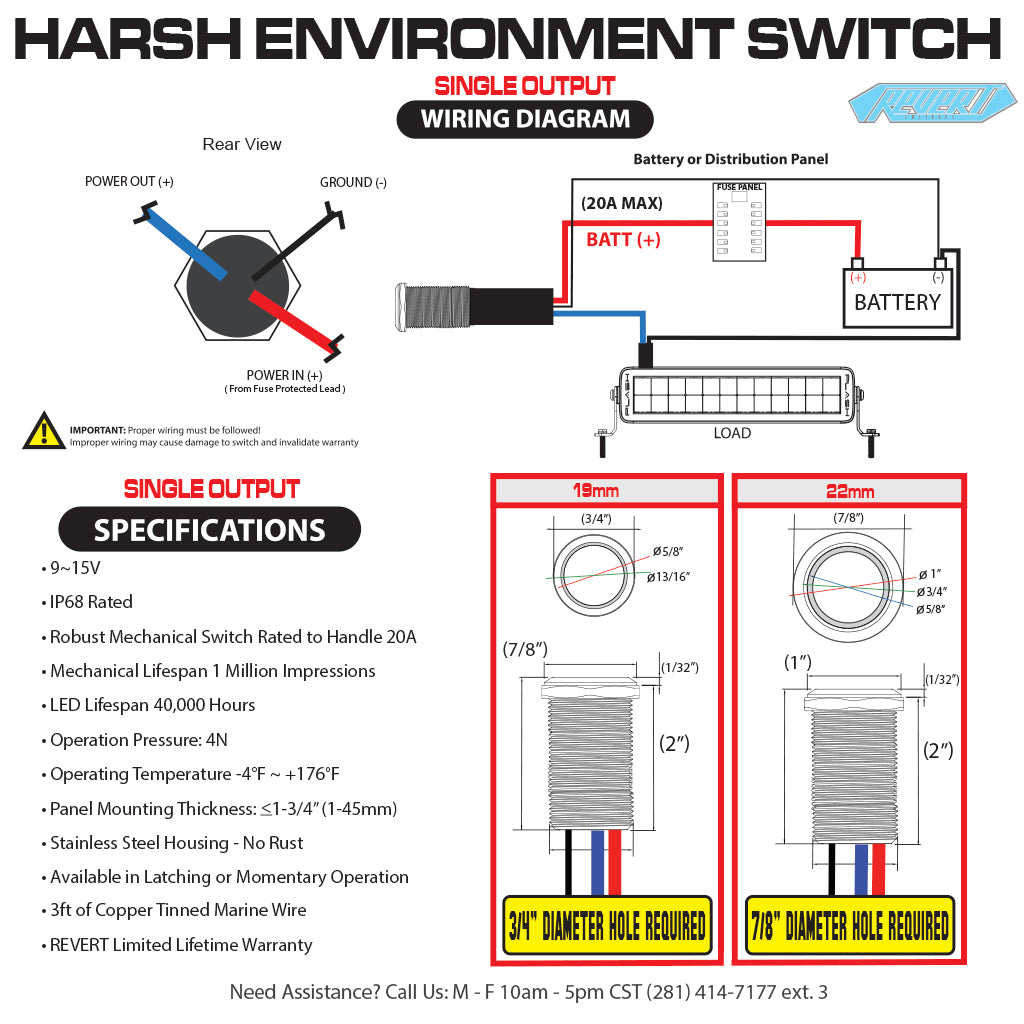

WIRING:

SPECIFICATION SHEET:
